製品の概要

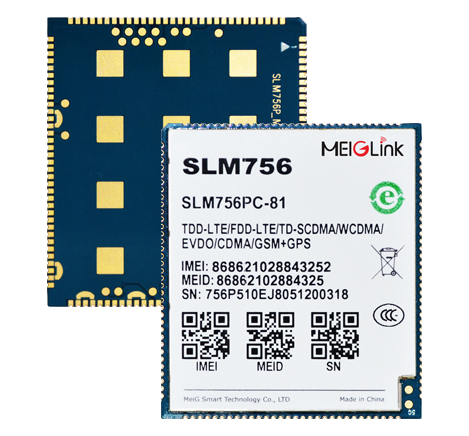

MeiG Smart SLM756 smart module, based on Qualcomm platform of MSM8909, is a new generation of LTE intelligent communication module. It supports multi-modes of network connectivity including TD-LTE/FDD-LTE/WCDMA/TD-SCDMA/EVDO/CDMA/GSM and supports multi-modes of satellite signals from GPS/Glonass/BeiDou for positioning. SLM756 has a memory spec of 8GM+1GBwith built-in Android OS. It is integrated with a high-performance GPU-Adreno 304 and features encoding and decoding of various videos and audios, supports 720P video, has a rich set of interfaces for video and audio and abundant GPIO ports.
SLM756 not only provides high-speed access of broadband data, but also has the functionalities of voice, texts, address books, wifi, bluetooth and GPS. This module is applicable in a wide range of applications, such as video monitoring, security, vehicle equipment, smart hand-held terminals etc.
Main Advantage：
- Support 2.4G& 5G Wi-Fi
- Support Cat.4 FDD&TDD, MAX DL 150Mbps
- LGA+LCC
- Support 1280*800@60fps Display
- Support Dual-MIPI CAMERA
- Support 1080p@30fps decode and 720p@30fps encode
製品パラメーター
General features:
| OS： | Android 7.1 |
| Storage： | 8GB eMMC+1GB LPDDR3（default） |
| Operating Temp： | -25°C ~ +75°C |
| Size： | 44.0×39.0x3.0mm |
| Package： | LCC+LGA 130PIN |
| Weight： | 10g |
| Certification: | CCC/CE/FCC/BQB |
Outstanding features：
| WLAN： | IEEE 802.11a/b/g/n 2.4G&5G |
| BT: | BT2.1+EDR/3.0/4.1 LE |
| GNSS: | GPS/GLONASS/BeiDou |
Interface：
| LCM： | HD（720p）,4-lane,DSI |
| Camera： | Support 8MP primary;2+1 lane CSI or 4-lane CSI |
| Analog Audio： | Speaker, Receiver, Ear phone, mic*3 |
| USB： | USB 2.0*1,Support USB OTG |
| I2C: | x2 |
| (U)SIM: | x2（1.8V/2.95V） |
| UART: | x3 （Max rate of 4Mbps） |
| SD Card: | x1（Support SD 3.0, 4-bit SDIO） |
| PWRKEY: | 1.8V , Internal pull-up |
| SPI: | x1 (master only) |
| ADC: | x2 |
| GPIO: | x17 |
| Motor drive: | x1 |
| Antenna: | LTE,DIV,GNSS,Wi-Fi & BT |
Audio & Video：
| Supports low-power MP3 & AAC Dolby Digital enhancement technology and DTS-HD surround sound |
|
| Video codec: | Encode 720p@30fps；1080p@30fps decode |
Band(MHz)：
| China | |
| SLM756PC | |
| LTE-FDD: | B1/3/5/8 |
| LTE-TDD: | B38/39/40/41 |
| TDSCDMA: | B34/39 |
| WCDMA: | B1/5/8 |
| CDMA 1X/EVDO: | BC0 |
| GSM: | B3/5/8 |
| America | |
| SLM756PN | |
| LTE-FDD: | B2/4/5/7/12/13/17 |
| WCDMA: | B2/4/5 |
| Europe | |
| SLM756PE | |
| LTE-FDD: | B1/3/5/7/8/20 |
| LTE-TDD: | B38/40/41 |
| WCDMA: | B1/5/8 |
| GSM: | B3/5/8 |
| Latin America | |
| SLM756PL | |
| LTE-FDD: | B1/3/5/7/8/28 |
| LTE-TDD: | B40 |
| WCDMA: | B1/2/5/8 |
| GSM: | B2/3/5/8 |
| Japan | |
| SLM756PJ | |
| FDD-LTE： | B1/3/8/18/19/26 |
| TDD-LTE： | B41 |
| WCDMA： | B1/5/6/8/19 |
| Remarks：*In research and development… | |
