製品の概要

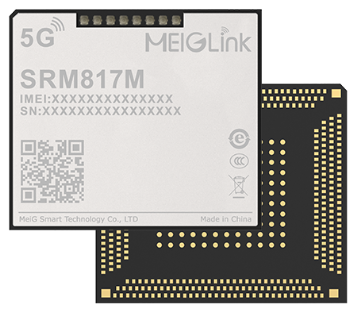

MeiG Smart SRM817M module is designed for IoT and eMBB applications services by 5G NR Sub-6GHz networks. Based on Qualcomm Snapdragon® X72 5G modem,it complies with 3GPP Release17 standards and can support SA and NSA, covering the main operators’network of the world.
SRM817M can support 5G NR Sub-6GHz TDD/FDD 3CC CA,and up to 200MHz bandwidth,can ectively increase 5G UL and DL transmission rates.
SRM817M adopts a quad-core A55 processor,with clock speed up to 2.2GHz,it provides enhanced processing power and rich peripheral interfaces,which can support three groups of high-speed PCIe,two groups of USXGMII, USB 3.1,multiplexed UART, ADC and GPIO.It can support the latest Wi-Fi 7 and 10Gb Ethernet,which brings more flexible choices and more competitive price for FWA/eMBB/industrial router products.
SRM817M can support OpenWRT and OpenCPU,which is more flexible and greatly simplifies the development process of 5G terminal devices,and will empower various related products such as FWA,eMBB,automotive,industrial IoT and 5G enterprise network.
Main Advantage：
- 3GPP Release 17 Standard, support 8RX and PC1.5
- Support Sub-6GHz TDD/FDD 3CC CA, bandwidth can up to 200MHz
- Rich PCIe, USXGMII high-speed interfaces, more flexible soft AP solutions
- Support OpenWRT and OpenCPU
製品パラメーター
Basic Features：
| Product number： | 5G-A Module SRM817M |
| Package： | LGA package |
| Size(mm)： | 56.0×53.0x2.95mm |
| Weight： | <20g |
Module Speed：
| 5G NR mmWave: | N/A |
| 5G NR Sub 6G SA: | 4Gbps DL/900Mbps UL |
| LTE ： | 2Gbps DL/200Mbps UL |
Drivers & Tools：
| Drivers： | Windows 7、Windows 8、Windows 8.1、Windows 10、Linux、Android |
| Tools： | Graphical upgrade tool, logging Tool |
| USB upgrade, FOTA upgrade | |
Module Interface：
| USB3.1×1 | |
| PCle Gen3.0 x3 | |
| USXGMll x2 | |
| SDIO3.0 x1 | |
| I2Cx1、I2Sx1、SPIx1、GPIOs | |
| USIMx2 | |
| no mmWave Interface | |
| Total 13 Antenna interfaces: | 4G/5G×6, LB 2T4R×2, 8RX×4, GNSS×1 |
Certifications：
| CE/GCF/Telec/JATE/FCC*/PTCRB* |
Transmission Power：
| Class 1.5 (29dBm+1.5dB) for N41/N77/N78 |
| Class 2 (26dBm+1.5dB) for N1/3/7/28/40 or N2/7/25/41/66/71 |
| Class 3 (23dBm±1.5dB) for 5G others & LTE |
Protocols：
| RNDIS/NDIS/IPv4/IPv6/TCP/UDP |
Temperature and Humidity：
| Nomal working temperature： | -30℃ to +75℃ |
| Extended operating temperature： | -40℃ to +85℃ |
| Storage temperature： | -45℃ to +90℃ |
| Humidity： | 5%~95% |
SRM817M Frequency Band:
| -EA: Region: Europe,Australia,Japan, Korea, Southeast Asia | |
| 5G NR mmWave: | N/A |
| 5G NR Sub6G: | |
| FDD: | N1/N3/N5/N7/N8/N20/N28/N71/N75/N76 |
| TDD: | N38/N40/N41/N77/N78 |
| LTE: | |
| FDD: | B1/B3/B5/B7/B8/B18/B19/B20/B28/B32/B71* |
| TDD: | B34/B38/B39/B40/B41/B42/B43 |
| WCDMA: | N/A |
| -JP:Region: Japan | |
| 5G NR mmWave: | N/A |
| 5G NR Sub6G: | |
| FDD: | N1/N2/N3/N5/N7/N8/N12/N20/N28 |
| TDD: | N38/N41/N77/N78/N79 |
| LTE: | |
| FDD: | B1/B2/B3/B5/B7/B8/B12/B17/B18/B19/B20/B26B28 |
| TDD: | B38/B41/B42 |
| WCDMA: | N/A |
| Remarks:* under development | |
